SMT PCB Depanelizer / V-Cut PCB Separator Machine , Circular blades

1 ชุด
MOQ
Negotiable
ราคา
SMT PCB Depanelizer / V-Cut PCB Separator Machine , Circular blades
คุณสมบัติ คลังภาพ รายละเอียดสินค้า ขออ้าง
คุณสมบัติ
ข้อมูลจำเพาะ
เทคโนโลยี Surface Mount: SMT
ชื่อผลิตภัณฑ์: เครื่องแยก PCB
ประเภทใบมีด: ใบมีดวงกลม
404 Not Found: ประหยัดปรับแต่งได้
ใบสมัคร: บอร์ด, แผงวงจรพิมพ์
แบบ: CWVC-2
แสงสูง:

PCB depanelization machine

,

PCB Cutting Machine

ข้อมูลพื้นฐาน
สถานที่กำเนิด: Guangdoing จีน
ชื่อแบรนด์: CW
ได้รับการรับรอง: CE and certificate of registion
หมายเลขรุ่น: CWVC-2
การชำระเงิน
รายละเอียดการบรรจุ: break
เวลาการส่งมอบ: 3 วันหลังจากได้รับการชำระเงิน
เงื่อนไขการชำระเงิน: T / TL / C paypal สหภาพตะวันตกบัตรเครดิต
สามารถในการผลิต: 300 ชุด / เดือน
รายละเอียดสินค้า

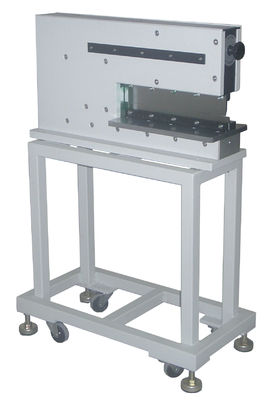

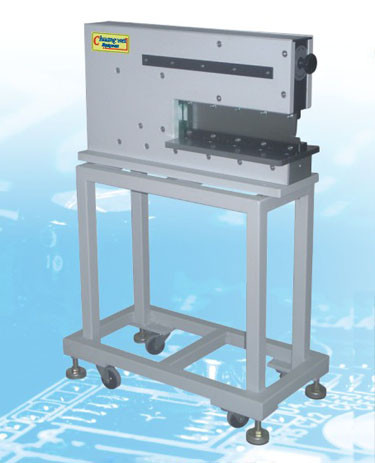

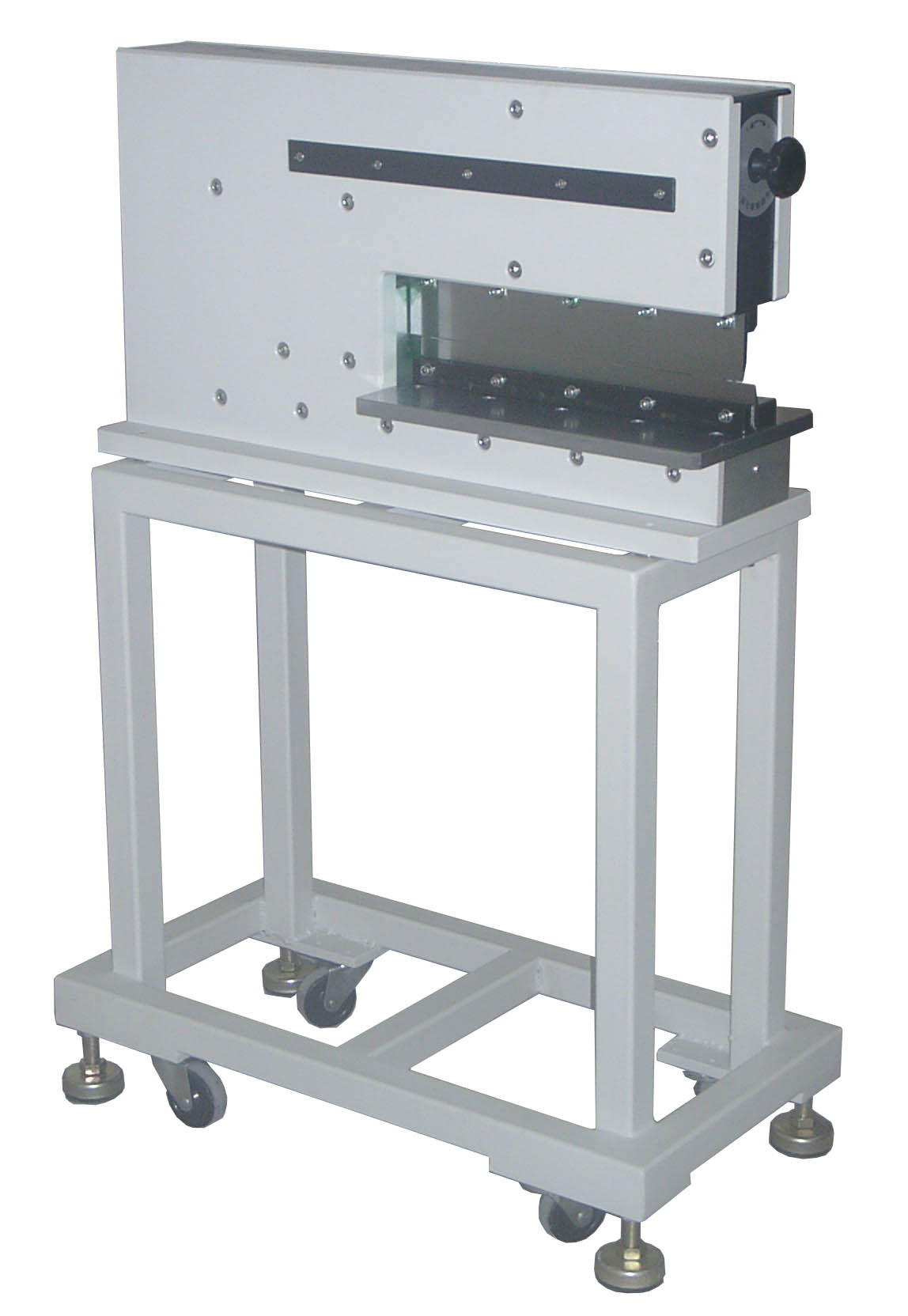

SMT PCB Depanelizer / V-Cut PCB Separator Machine , Circular blades


Features


1, No vibration during the process to prevent damage to precise PCB
2, Gap for insertion of the board can easily be adjusted by means of the adjusting knob in the top side of the machine, low friction design is applied.
3, Lower knife height adjustable, the front and real portion can be adjusted separately. No thin plates are required after re-sharpening the knife.
4, Operation and maintenance can be done also by unskilled personnel



Specifications:



Model:   CWVC-2

Voltage :110 V or 220V

Operating air pressure is : 0.6MPA~0.8Mpa

Machine Weight  185g
The Longest Minimize 330mm
Size 620mm X 230mm X 400mm
Minimize thickness 0.3-3.5mm
